Tilt and Turn Fittings
Why Tilt and Turn Fittings?
The important points why to use Qualital Tilt and Turn Fittings!
Security fittings for all type of materials:
- Timber windows
- Aluminium windows
- PVC windows
- Aluminium-timber and timber-Aluminium windows
Security fittings for all configurations:
- Square windows
- Arched windows
- French doors
- Trapezoid windows
Special windows made to the same quality as standard windows
- The sash lifter is a problem-solving component for windows, be they half round, angled, turn first or tilt first windows
- Special window styles can be produced using the standard window hinges
- The visible components remain the same as with standard windows
High security and functional fittings:
- Intelligent security-self adjusting fittings to the air gap
- Simple and easy to use
- No additional components
- Safety against accidental closure
- Safety against erroneous operation when tilting
- Secure tilt position
- Protection against condensation
- Healthy and correct room ventilation
- Easy to adjust
- Unique coupling System
- Additional ventilation position for Night time
The new trend drive gear
- Greater tolerance when positioning the striker plates
- Espagnolette and inversion drive gear have threaded holes for handle fastening
- Prevents the sash from dropping
- Lifts the sash into correct position with minimal effort
- Avoids erroneous operation with open sash
- Easy adjustment for hinges
- No adjustment or maintenance are required for the sash-lift device before 15000 operations
- Avoid abrupt sash swing when in tilt open position
- Greater stability of the hinge corner thanks to the additional screw fastening on the rebate side
- Corner hinges and trend stay support
Stay support
- High stability due to inclined screw fastening
- Braked hinges as standard avoid involuntary windows movement
- Lateral and pressure adjustment
- Can be used on both sides
- Suitable for all timber, aluminum, PVC and composite profiles

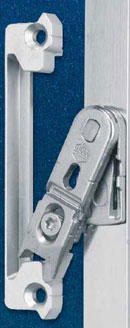

Corner hinges
- Three dimensional adjustment with a hexagonal socket spanner
- No screw on the side of the rebate
- No need to cut the seals
- Lower part flush with the rebate
- Cover cap finishes for the top and bottom hinges can match the color of handles
Rational assembly
- Milling can be done on separate parts before assembling
- Same milling for hinges and stay support
- Capacity load up 130 kg
- Disappearing screws
- Covers in a range of colors
- Simple fitting without templates thanks to the rebate on the frame
Disappearing central universal hinge
- Used mainly for tall windows
- Helps to prevent deformation and acts as a protection against unhinging
- Completely invisible when windows are closed
- Fully concealed within the air gap
- Suitable for all timber, aluminum, PVC and composite profiles
- No adjustment needed
- No particular drilling needed
- Separate parts assembly
- Can be used on both sides
Espagnolette with level control
- The ideal solution for double sash windows
- Both the top and bottom end parts can be opened at the same time
- Striker plates can be used in combination with controlled Espagnolette or with shoot bolts
- Pressure adjustable striker plates
The new anti burglar generation
- Auto regulation mushroom bolt-automatic air gap adjustment
- Auto regulation bolt automatically adapts to the profile gap and material deformation
- Easy pressure adjustment
- Can be combined with standard and/or safety striker plates
Secure tilt position by horizontal tilt lock bolt
- Additional security points on the bottom of the window as standard
- Anti-lift in the tilt position
- No special striker plates required
- Security can be upgraded with additional mushroom strikers
Additional ventilation position (Night Vent)
- Easy to use with a simple operation
- 10 to 13 mm Night vent opening set at 45° between the two open positions
- Built into the scissor stay, no additional components are required
- Additional security built into the fixed tilt position
- Self closing scissor stays (21mm) ensure a smooth operation
Long life, beautiful security design and style
- Corrosion and scratching protection and a new generation of burglar-proof fittings
- Revolutionary TRICOAT components
- Small is beautiful - fittings that can hardly be seen
- Partially and fully concealed top and bottom hinges
- Rebated drive gear for windows without a fixed mullion
Simplification of the manufacturing process
- One supplier for all window systems
- Universal sizes
- Suitable for manual (non-industrial) assembly
- Excellent for automatic assembly lines
- "Click-Fix" Euro groove clips
Click-Fix
- No special components are required
- Manually screwing approximately 4 min
- Semiautomatic assembly approximately 2 min
- Automatic assembly approximately 1 min
Same screw positions
- Same screw and cam positions on different striker plates
- No resetting of machines required
- Striker plates for automatic positioning and assembly into the frame
- Striker plates can be fixed into position before the frame is welded
Less parts-More possibilities
- Only one scissor stay for timber, PVC and Aluminium windows
- Change only striker plate to turn a normal window into a burglar resistant window
European quality and reasonable Australian prices
- Highest European and International standards and certification
- Special prices for manufacturers of European style windows
What is your next step?
If you would like to obtain further information on our products, please call us on 03 9315 2715 or send us an email.
